U1000 PLUS

U1000 PLUS

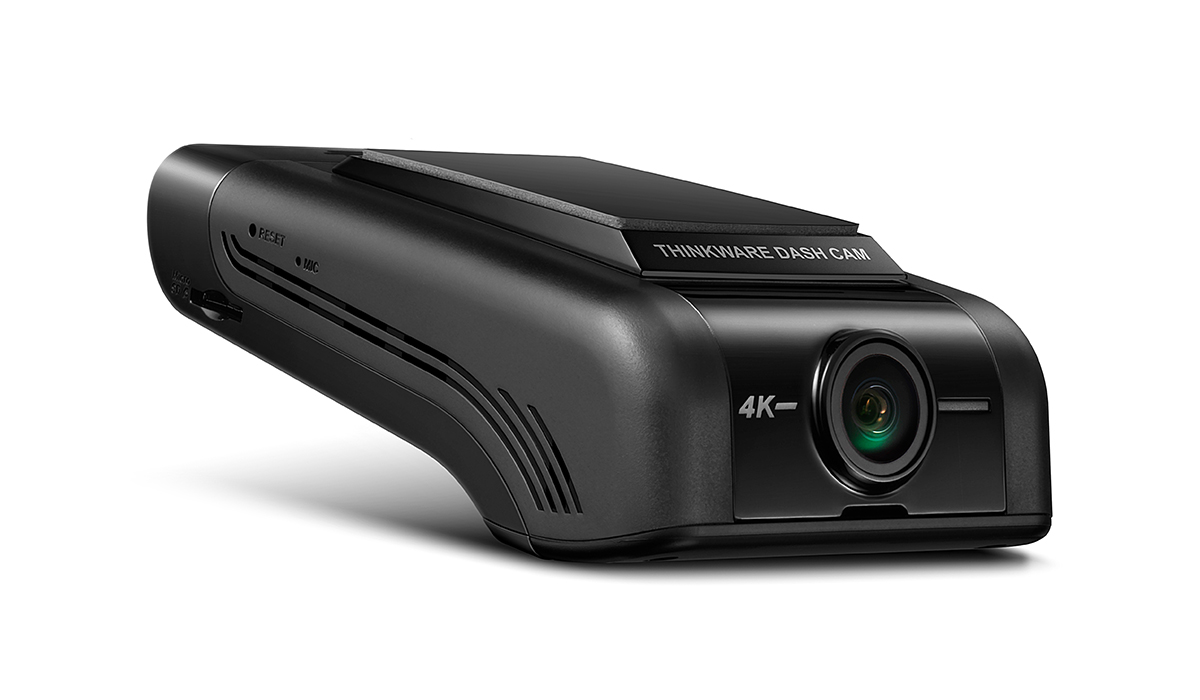

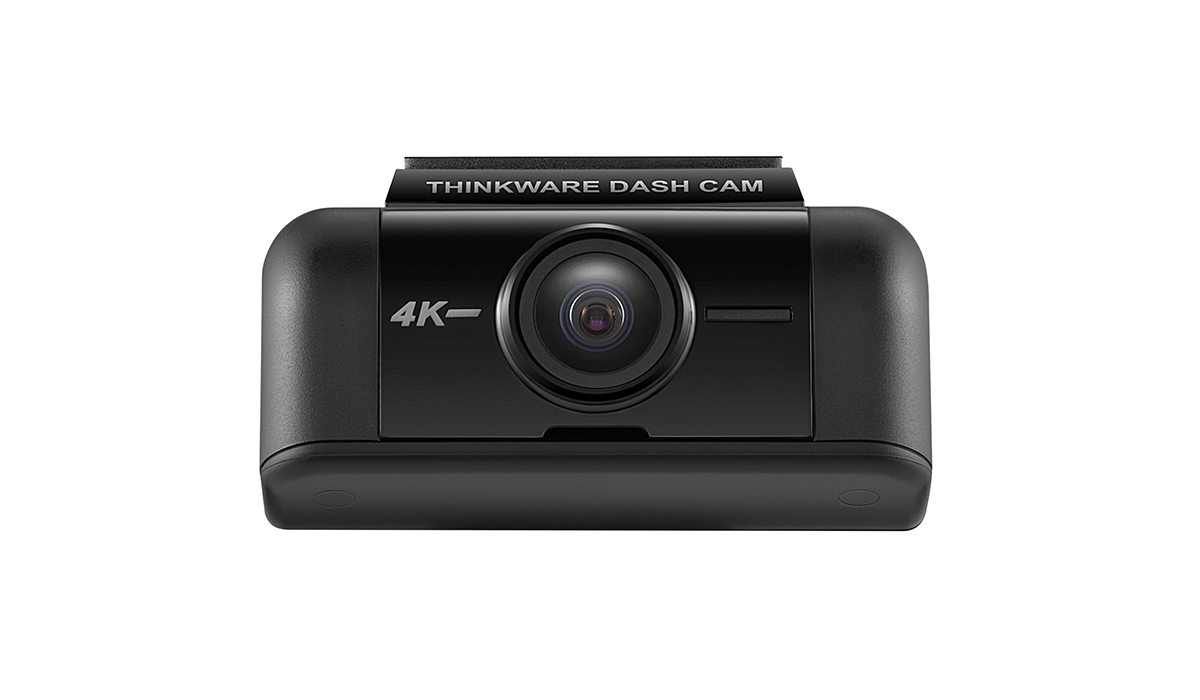

THINKWARE’s dash cam model U1000 Plus captures true 4K UHD resolution at the front and 1080P HD resolution at the rear, making it one of the highest resolution 2 channel dash cams in the market! Housed in a low profile and modern design, the U1000 Plus brings to the table the latest Cloud Connected features including Live View, Locate Vehicle, Geo-Fencing and Impact Notifications, along with other important driver safety features such as ADAS and safety camera alerts.




Dual Channel
Recording

Front-facing dashboard camera with rear camera input




4K UHD
Video Recording

From the front cam & 1080P HD rear cam


135° Front / 160° Rear Wide Angle Field of View

Superb coverage that minimises blind spots at all times




5 Channel Thinkware Multiplexer Compatible

Record up to 5 channels with the New MULTMOD Multiplexer Module

* sold separately.




Thinkware
Cloud*

Live View | Geo Fence | Locate Vehicle | Impact Notification

* Internet and Hotspot Connection Required.




State of the Art
Video Enhancement

High Dynamic Range (HDR) | Nighttime Picture Quality Correction | Automatic Exposure




Built-in
WiFi

Control, manage and update
the firmware or check, download or delete recorded videos whenever needed via
THINKWARE™ app




Advanced Driver
Alert System (ADAS)

Lane Departure Warning System
(LDWS) | Forward Collision
Warning System (FCWS) |
Urban Forward Collision System
(uFCWS) | Front Vehicle
Departure Warning (FVDW)




Various Autonomous
Recording Modes

Continuous Recording | Event Recording | Manual Recording | Advanced Parking Surveillance Mode (HWC Required) | Audio/Voice Recording




Parking Surveillance
Mode

Radar | Smart | Motion & Impact Detection | Time Lapse | Energy Saving Mode




Super Night Vision
3.0

Enables for enhanced
low light recording




Comprehensive Driving
Information with GPS

Accurate vehicle speed reading and location tracking for peace of mind




Safety Camera Alerts

Timely Speed, Red Light Cameras and Mobile Speed Zones notifications




High Temperature
Protection
(Integrated
Thermal Protection)

Unscathed SD card and video files even in the hottest environment




Fail Safe Recording

Ensures safe storage of recordings in case power gets disconnected after an accident




Memory Card

Format Free 2.0
Supports up to 512GB




PC Viewer

Proprietary THINKWARE
Dash Cam PC Viewer




Warranty

3 Years

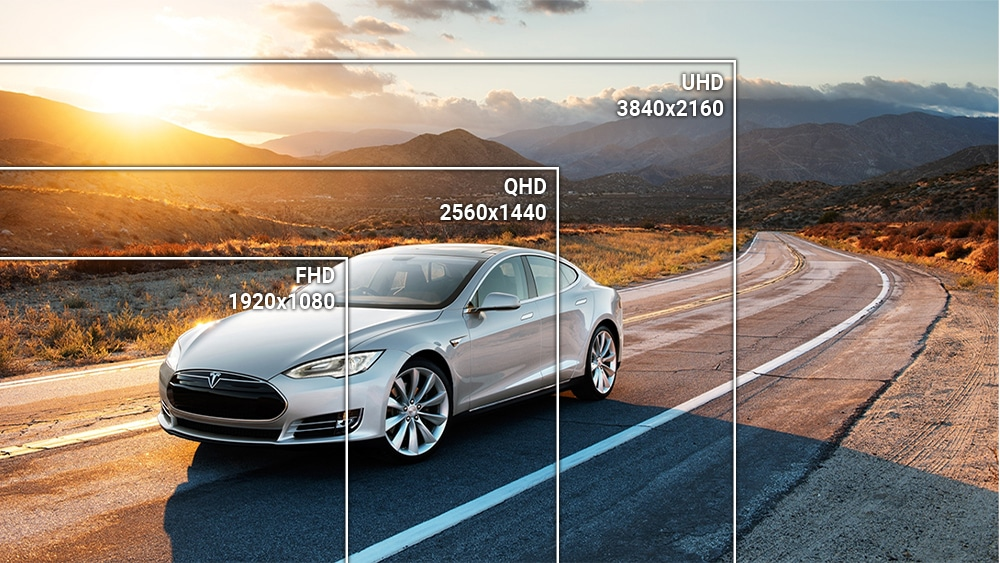

ULTRA HIGH DEFINITION
VIDEO QUALITY

Equipped with Sony STARVIS IMX515 Image Sensors, this lets you record crisp and clear 4K UHD 2160P front and 1080P HD rear cam videos be it daytime or nighttime. Even better, it sports a 135-degree front and 160° rear wide angle lens view that minimises blind spots across the board.

DYNAMIC 2K
AT 60FPS

U1000 Plus also supports 2K QHD recording at 60 frames per second.
High frame rate delivers both smoother and sharper image.

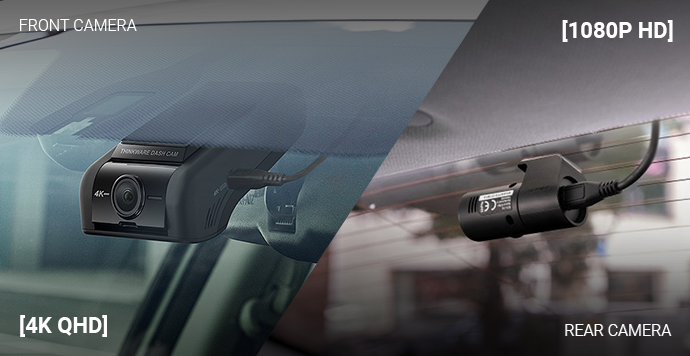

DUAL
CHANNEL

Equipped with a second camera, this can take your surveillance capabilities to the next tier. Just add in the 1080P HD rear camera to the mix to get peace of mind across the board, as doing so lets you keep an eye on what’s happening behind your vehicle, included in 2 channel kits.

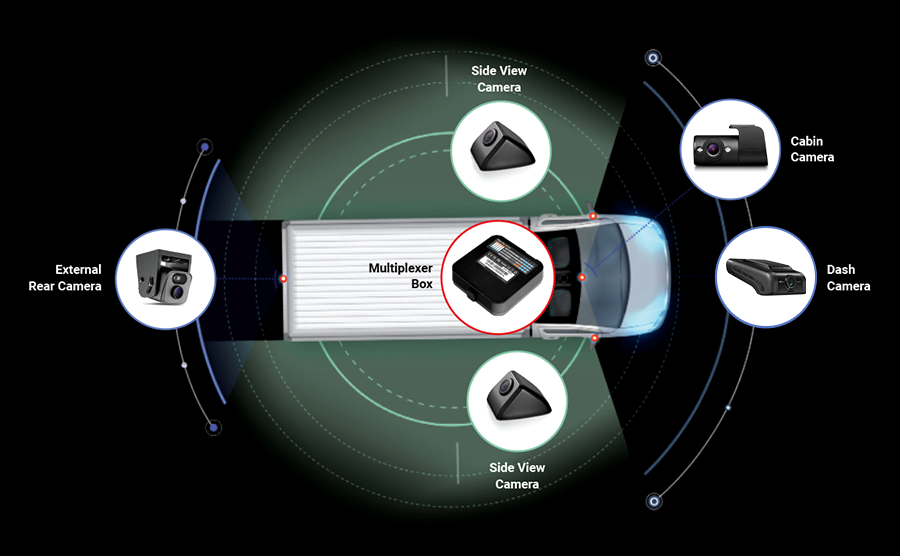

THINKWARE 5 CHANNEL
MULTIPLEXER COMPATIBLE*

Record up to 5 channels with the New MULTMOD Multiplexer Module!
The module connects to the rear input of the dash cam and allows up to four additional cameras to be connected.
The recorded footage from the additional cameras merge together to provide a single split screen 1080P FHD video file.

  *Sold separately.





STATE-OF-THE-ART
VIDEO ENHANCEMENTS


High Dynamic Range (HDR)

Corrects images through color balance adjustment in environments with strong sunlight or shadows.




Smart Auto-Exposure (AE)

Adjusts the exposure to record clear footage when there is strong sunlight or headlight.




Dewarping Video Technology

Minimizes image distortion typically caused by a wide angle lens, and delivers a close-to-real image of the world.

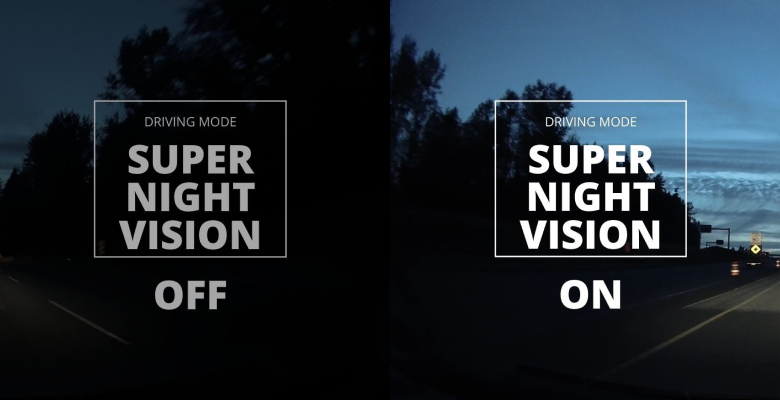

SUPER NIGHT VISION
3.0

Revolutionize night time recording with enhanced video brightness and reduced image noise in low-light conditions with our advanced Super Night Vision technology. Leveraging Image Signal Processing (ISP) technology and real-time image processing, the system captures significantly greater detail at night. With the 3.0 version, enjoy the flexibility of having Super Night Vision in Continuous Mode and Parking Mode.

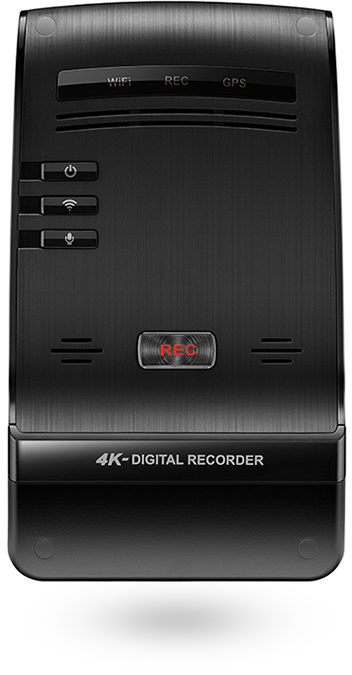

VARIOUS AUTONOMOUS
RECORDING MODES


Continuous
Recording Mode

Automatically activates as soon as the engine starts, this function lets you record videos that are saved in one-minute segments via an auto-looping mechanism.


Event Recording
Mode

Active Impact Monitoring System, made possible by the built-in three-axis G-Sensor, automatically stores video data 10 seconds prior and after a collision.


Manual
Recording Mode

Similar to how a typical video camera works, you use this mode to record events in front of your vehicle, whether or not it’s in motion, as they happen.


Advanced Parking
Surveillance

Provides full surveillance capabilities whenever your vehicle is parked. It records motion and impacts while the vehicle is parked.


Audio / Voice
Recording

Not only does it capture vivid videos, but it also records crystal-clear audio. This enables you to enjoy top-tier comprehensive surveillance capabilities to the fullest, too.


Parking Surveillance
MODE

With hardwiring installation, enjoy parking protection against potential mishaps and hit-and-runs by capturing footage when an impact or motion is detected (hardwiring cable or OBD-II cable required).
You can tailor the U1000 Plus’ Parking Surveillance mode to the coverage that best fits your surveillance needs by choosing from Impact/Motion Detection, Time Lapse, or Energy Saving parking modes.





app store



Smart Parking Mode

Smart Parking Mode feature prevents heat-related damage by automatically switching the U1000 Plus to a low-power mode if the temperature inside the vehicle gets too high during Parking Surveillance. In this state, the dash cam records incidents triggered by impacts only until its operating temperatureissafe again to resume Motion Detection or Time Lapse Parking mode.

app store



Impact and Motion Detection

With Impact and Motion Detection turned on, any potential vandalism attempts and hit-and-run drivers while the car is parked will be caught in the act. In Parking mode, Impact detection captures any impact to the vehicle while Motion Detection captures any movement around the vehicle.

app store



Time Lapse

Time Lapse in Parking mode records footage at 2fps, enabling the dash cam to continuously record long periods of parking surveillance without increasing power consumption.

app store



Energy Saving 2.0

Energy Saving 2.0 in Parking Surveillance mode records footage triggered by impacts only, allowing the U1000 Plus to reduce its power consumption and remain in Parking mode for a longer duration.




THINKWARE
CLOUD*




Live View*

Watch what is happening in real-time. Monitor your vehicle with your smartphone, no matter where you are. Live Resolution: 768x452p @15fps (available during Continuous Driving Mode)
* Live View: Up to 300 minutes per month. (Reset on every 1st day of the month)




Geo Fencing*

Aside from alerting you about the vehicle’s whereabouts, Geo-Fencing lets you know whenever your vehicle goes inside or outside a certain area. This will send you a push notification via the THINKWARE CLOUD mobile app. Even better, the Geo-Fence’s radius can be set by typing in the address or simply using a pin point on the mobile app itself.




Locate Vehicle*

This helps you find the vehicle’s real-time position using its Locate Vehicle function. As it updates every 10 seconds, it displays the current location, driving speed information and the direction it’s headed with the help of the Google Map.




Driving Impact Notification*

Using the THINKWARE Cloud app, this sends an alert to the user’s smartphone, should the vehicle figure in a collision or accident. On the other hand, the owner’s registered contacts can be notified in case the driver gets involved in a car crash, as well.




* The Thinkware Cloud features will only work when the vehicle ignition is on and the dash cam is in Continuous Driving Mode. The Thinkware Cloud App must be downloaded to the Smartphone and an account must be registered. The dash cam must be connected via hotspot to a smartphone or wifi dongle that is located within the vehicle at all time to use the Cloud Features. This requires an internet connection with data available. Carrier fees and charges will apply.

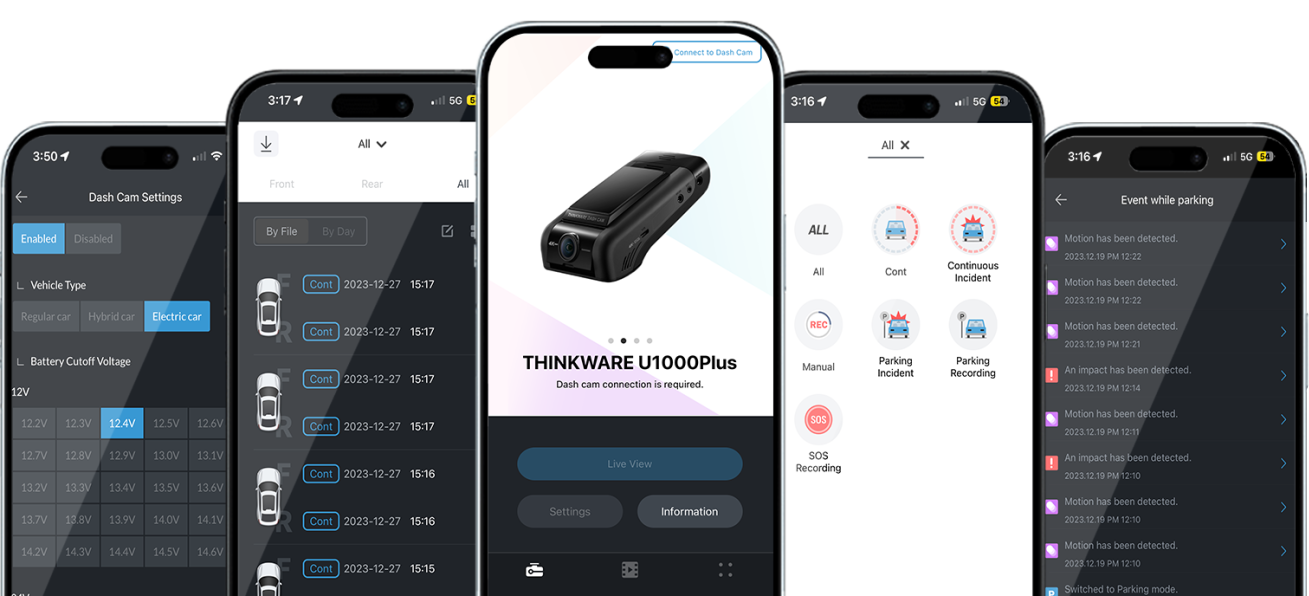

Easy Wi-Fi Device Pairing
WITH Thinkware Dash Cam Link App & Bluetooth

Built-in Bluetooth allows hassle-free dash cam pairing with your compatible Android or iOS device via the Thinkware Dash Cam Link App.
Once paired, replay your latest driving videos and manage your dash cam’s settings with the Thinkware Dash Cam Link App.










Convenient control, efficient video download and real-time view all through one app. Get it now.




THINKWARE DASHCAM LINK
Q1000, Q200, F790, F800, F200 PRO, F200, FA200, ARCD32 and U1000 Plus
app store
google play




Advanced Driver Alert System
(ADAS)

LDWS

Lane Departure Warning System

Designed for distracted or drowsey drivers, the dash cam will alert you as soon as it senses you’re vehicle leaving the lane while driving at a speed of over 50 kilometres per hour. LDWS alerts you when leaving your lane to help keep any road misfortunes from ruining your trip or compromising you and your passengers’ safety.

FCWS / uFCWS

High Speed / Urban Forward Collision Warning System

Keep a safe distance from the vehicle you’re following with the help of FCWS / uFCWS. Equipped with a state-of-the-art road safety warning system, it calculates the real-time distance between your vehicle and the automobile in front of you at a speed of over 30 kilometres per hour (km/h) (in expressways) and under 30 km/h in a busy, congested city. This dash cam issues a three-level early warning to the driver, depending on the danger of the possible collision.

FVDW

Front Vehicle Departure Warning

When stopped at an intersection or a traffic jam, this dash cam's Front Vehicle Departure Warning (FVDW) intelligent guidance system lets you know when the vehicle in front of you has already started moving, helping you stay attentive each time.


COMPREHENSIVE DRIVING INFORMATION
WITH GPS

This dash cam has built-in GPS, meaning, it can help you keep track of your vehicle’s driving speed, precise location while identifying ideal routes on the map. GPS also allows for an accurate assessment of a specific area’s details, letting you pin holiday routes for faster travels. In case of a road mishap, it supplies factual reading of vehicle speed, time of the collision and impact severity.


RED LIGHT



SPEED CAMERA



RED LIGHT & SPEED CAMERA



AVERAGE SPEED



MOBILE ZONE



SAFETY CAMERA
ALERTS

This dash cam comes with various Safety Camera Alert functions aimed at helping drivers abide by traffic rules and regulations to avoid getting ticketed for an infraction. Since it sports a built-in GPS, it lets a driver know about a designated average speed camera & mobile speed zones and notifies drivers of upcoming fixed red-light and speed cameras.


HIGH-TEMPERATURE
PROTECTION SYSTEM


Like all THINKWARE dash cams, this one comes with a built-in thermal sensor that protects it from getting hounded by the intense heat. Clad in a specially-designed heat discharge construction, the sensor automatically shuts the U1000 down to prevent it from overheating, allowing the dash cam to thrive even in the harshest Australian weather conditions.

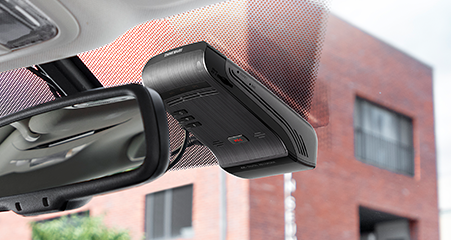

FAIL-SAFE
RECORDING


In case the power gets disconnected after an accident, the dash cam's supercapacitor-powered Fail-Safe Recording mode kicks in to ensure the safe and uninterrupted storage of any recording in progress at the time of the collision. Rest assured, these valuable files will be securely stored and stay accessible under any circumstances.


FORMAT-FREE 2.0
TECHNOLOGY

Format-free 2.0 Technology helps extend your memory card’s shelf life. Since this dash cam utilises the File Allocation Table (FAT) system, there’s no need for you to keep on formatting the card manually. Why? Because this mechanism automatically deletes older and less important files in the memory.


PROPRIETARY THINKWARE DASH CAM
PC VIEWER

The intuitive and simple-to-use interface of THINKWARE DASH CAM allows you easy and convenient viewing of your recorded videos. Through PC or Mac viewer, you can playback and download recorded videos along with your route history and speed record. You can also change the dash cam settings, format the memory card, or install updates with just a few clicks on the viewer.




FULL SPECIFICATION

Number of Channels 2
Resolution 4K 2160P (front) / 1080P HD (rear)
Frames Per Second 30 (60 if resolution is changed to 2K front + full HD rear)
Camera Angle 135° (front) / 160° (rear)
Image Sensor / Camera Type Front: 8.46 MP Sony STARVIS IMX515
Rear: CMOS, 2.0MP, 1/2.8“

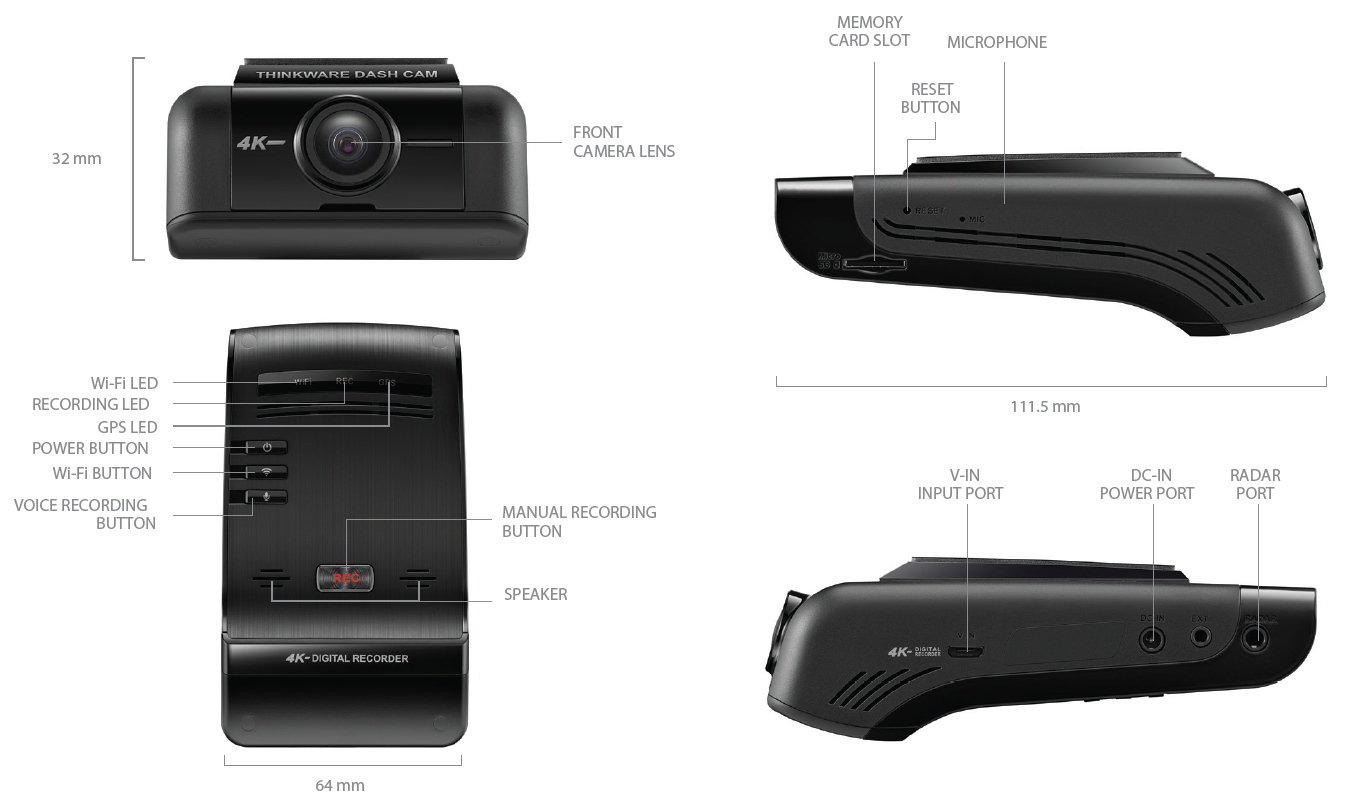

Dimensions / Weight 64 x 111.5 x 32 mm / 127.8 g (0.28 lbs)
Video Enhancement Technology

Wide Dynamic Range

Yes

Night Time Picture Correction

Yes

Intelligent Automatic Exposure

Yes

Noise Reduction

Yes

Advanced Video Clear

Yes

Dewarping Technology

Yes

Super Night Vision 3.0

Yes
WiFi Yes
Bluetooth Yes
GPS Yes
G-Sensor Yes
Display Screen(Size) -
Super Capacitor / Battery Super Capacitor
High Temperature Protection Yes
Operating Temperature -10°C to +60°C
Storage Temperature -20°C to +70°C
Power Input DC 12/24V
Power Consumption 2 CH 5.1W / 1 CH 3.1W (mean)
Voltage Detection / Cut Off Yes
Hard Wire Kit (HWC) Included
Mounting Type Adhesive
Thinkware Cloud

Live View

Yes

Geo Fence

Yes

Vehicle Location

Yes

Impact Notification

Yes

Video Storage

Yes
Camera Alerts

Fixed Speed Camera

Yes

Mobile Speed Camera Zone

Yes

Average Speed Camera Zone

Yes

Red Light Camera

Yes
Advanced Driver Alert System (ADAS)

Lane Departure

Yes

Urban Forward Collision

Yes

High Speed Forward Collision

Yes

Front Vehicle Departure

Yes
Recording Modes

Continuous Loop

Yes

Impact / Incident

Yes

Manual

Yes

Park Motion Detect

Yes

Park Impact / Incident

Yes

Park Time Lapse

Yes

Park Energy Save

Yes

Audio / Voice

Yes
Video Format MP4
Video CODEC H264
Audio CODEC HE-AAC
Memory Card Capacity / Class Supports up to 512GB / UHS-I
Warranty 3 Years (on camera hardware, 12 months on micro SD)
Country of Manufacture Korea

















DUAL CAMERA KIT


DASH CAM

MOUNT

QUICK START GUIDE

64GB MICRO SD CARD
(Capacity Model Dependent)

ADHESIVE CABLE CLIPS




SPARE 3M ADHESIVE
