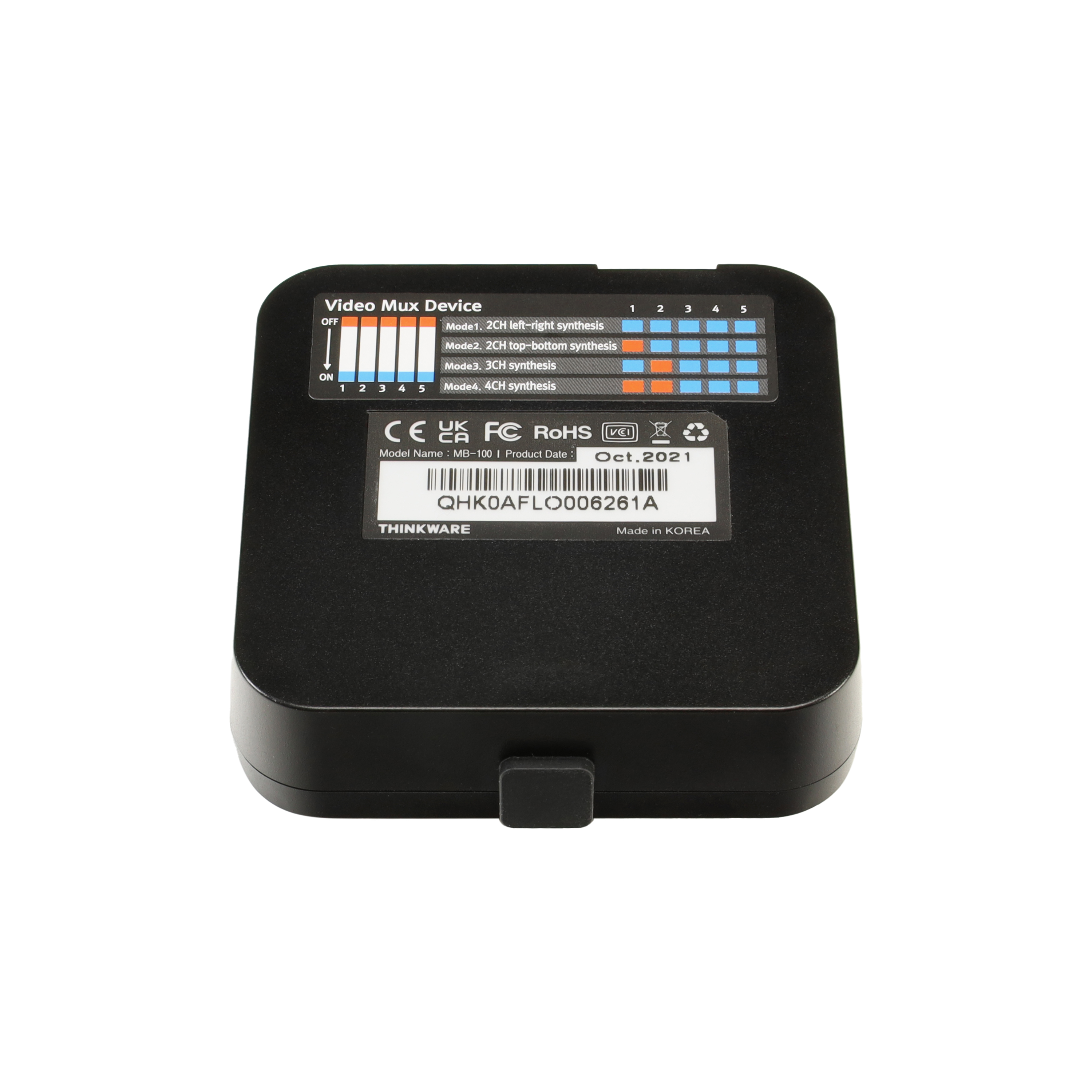

MULTMOD MULTIPLEXER MODULE

The Thinkware MULTMOD Multiplexer Module transforms Thinkware Q200, F200PRO, F790, T700 and X800 Dash Cam models into a five channel dash cam solution. The module connects to the rear input of the dash cam and allows up to four additional cameras to be connected. The recorded footage from the additional cameras merge together to provide a single split screen 1080P FHD video file.

Optional cameras (sold separately) compatible with this system include:

  • 1080P FHD Internal Rear Window Camera (F2PT7RA)
  • 1080P FHD Internal Infrared Cabin Camera (MULTIR)
  • 1080P FHD External Rear Camera (MULTEC5 - 5M Cable / MULTEC20 - 20M Cable)
  • 1080P FHD External Side Camera (MULTSC)


The optional cameras can be used in any combination, providing a wide range of vehicle surveillance solutions. Applications include standard vehicles for drivers who want full surveillance around their vehicle, taxi drivers who want internal and external surveillance, truck fleets that want to monitor driver behaviour as well as the outside of the vehicle and the ever-expanding fleet of delivery vans.


MULTIPLEXER MODULE VIDEOS

INSTALLATION VIDEO
CAMERA CONFIGURATION VIDEO

Features:
  • Compatible with Thinkware Q200, F200PRO, F790, T700 and X800 dash cam models
  • Enables four additional cameras to be connected to the rear camera input on the dash cam
  • Up to five channels in total can be provided by one system
  • Optional Cameras include Internal Rear, Internal Cabin, External Rear and External Side
  • All Optional Cameras are 1080P FHD
  • Additional cameras merge together to provide a single split screen 1080P FHD video file
Specs:
  • Compatible With: Q200, F200PRO, F790, T700 and X800 Dash Cam Models
  • Resolution: FHD (1920x1080) 30FPS (outputs single video file, supports 1-4 recordings per file)
  • Key: Piano Code Switch (No. of recording channels is set by switch setting):
    • Mode 1: 2CH Left - Right Synthesis
    • Mode 2: 2CH Top - Bottom Synthesis
    • Mode 3: 3CH Synthesis
    • Mode 4: 4CH Synthesis
  • Power:
    • Voltage: DC 12 V - 24V
    • Yellow Cable: Power (Constant - Parking Mode / Accessory - No Parking Mode)
    • Black Cable: Ground
  • AV-IN (for connection to optional cams):
    • Total Inputs: 4 (CAM 1, CAM 2, CAM 3, CAM 4)
    • Connection: 2.5 Stereo-Jack Type
    • Cable Length: 15cm (per connection)
  • AV-OUT (for connection to dash cam)
    • Connection: 2.5 Stereo-Jack Type
  • Temperature Range:
    • Operating: -10C to 60C
    • Storage: -20C to 70C
  • Dimensions: 65W x 65D x 17.5H mm
  • Weight: 40G
  • Note:
    • Up to 4 cameras can be connected to the module. A single FHD video file will be produced with up to 4 recordings within the single file.
    • Optional cameras are not included.
    • Replacement power cable is available as a spare part (Model: MULTPC)
