THINKWARE DASH CAMERAS

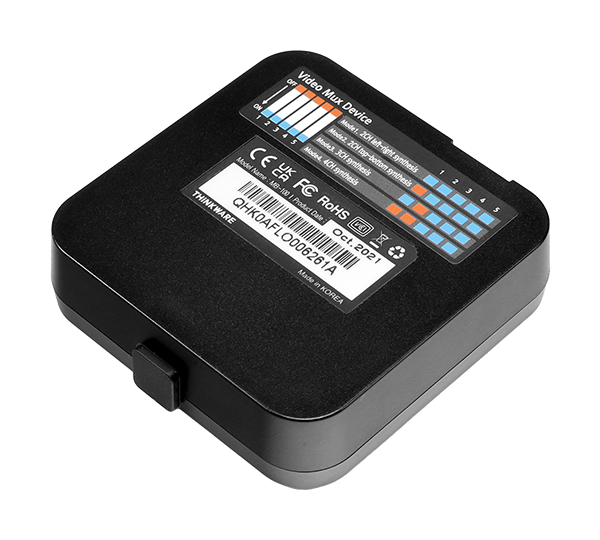

MULTIMOD MULTIPLEXER MODULE

THINKWARE 5 CHANNEL
DASH CAM SOLUTION

Record up to 5 channels with the New MULTMOD Multiplexer Module!


HOW IT WORKS

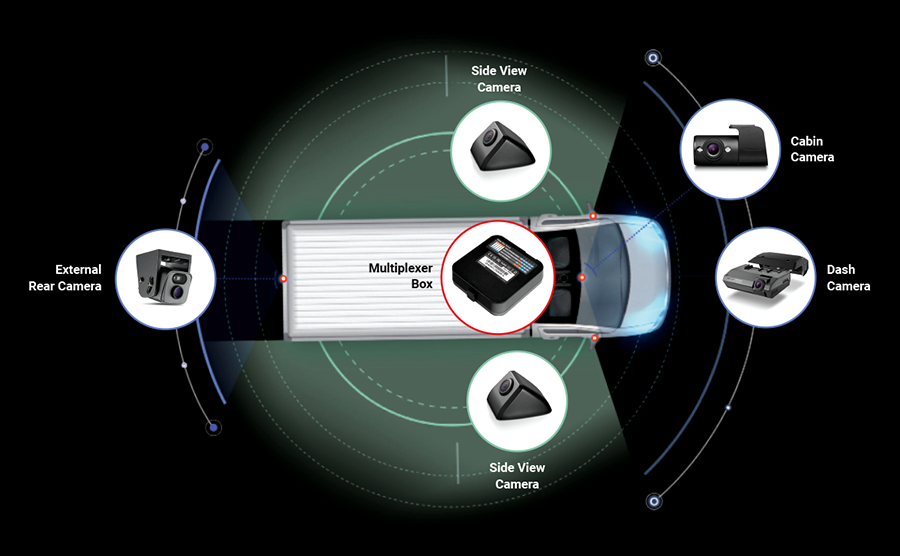

The module connects to the rear input of the dash cam and allows up to four additional cameras to be connected.

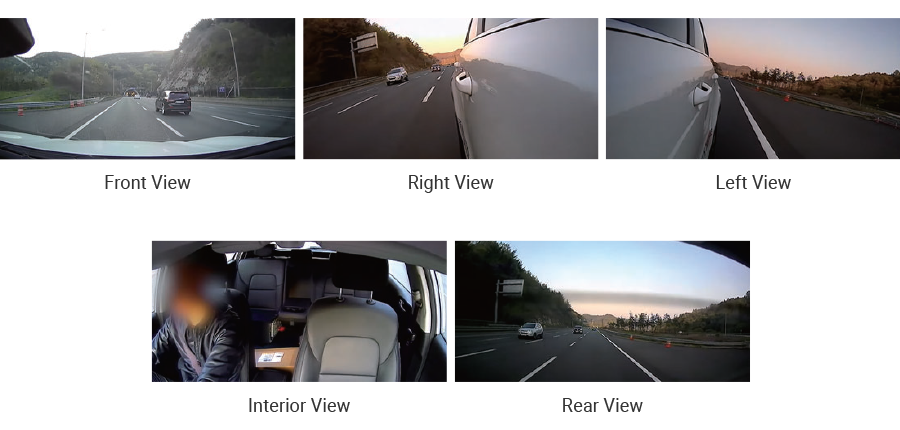

The recorded footage from the additional cameras merge together to provide a single split screen 1080P FHD video file.





FEATURES



Multichannel Dash Cam
(Up to 5 channels)

The MULTMOD Multiplexer Box can support up to 5 channels; front dash cam plus 4 additional cameras to provide all round surveillance.

Full HD
Video Quality

The recorded footage from the additional cameras merge together to provide a single split screen 1080P FHD video file.

IP68 Weatherproof
Housing

The rugged external camera has an
IP68-rated body that protects against dust and water.

Compact
Cameras

Compact cameras enable discreet installation around the vehicle.

COMPATIBLE DASH CAM MODELS

The Multiplexer Module and Optional Cameras are compatible with the following dash cam models:

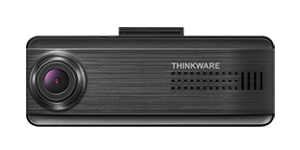

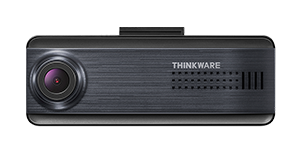

F200PRO

Full HD Dash Cam

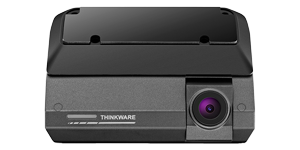

F790

Full HD GPS Dash Cam

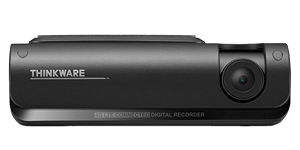

T700

Full HD LTE Dash Cam



OPTIONAL CAMERAS



F2PT7RA

1080P FHD Internal Rear Window Camera

MULTIR

1080P FHD Internal Infrared
Cabin Camera

MULTEC5

1080P FHD External Rear Camera with 5M Extension

MULTEC20

1080P FHD External Rear Camera with 20M Extension

MULTSC

1080P FHD External Side
Camera



APPLICATION EXAMPLES

The optional cameras can be used in any combination, providing a wide range of vehicle surveillance solutions.
They can also be connected directly to the front dash cam without the Multiplexer Module if only one additional camera is required (i.e. for a 2 channel recording solution).
Here are some application examples:

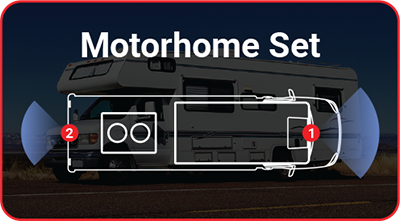

2 CHANNEL SOLUTION

1. Dash Cam (F790)
2. External Rear Cam (MULTEC20)

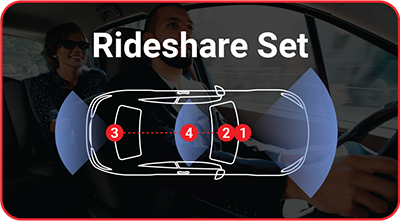

3 CHANNEL SOLUTION

1. Dash Cam (F790)
2. Cabin Camera (MULTIR)
3. Rear Window Cam (F2PT7RA)
4. Multiplexer (MULTMOD)

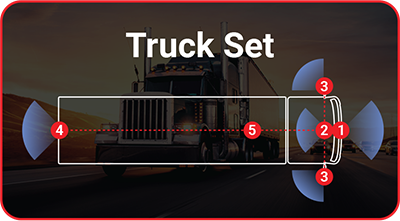

5 CHANNEL SOLUTION

1. Dash Cam (F790)
2. Cabin Camera (MULTIR)
3. 2x Side Cameras (2xMULTSC)
4. External Rear Cam (MULTEC20)
5. Multiplexer (MULTMOD)
